Three-Phase Voltage Option
Description

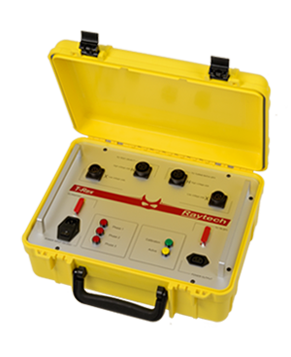

The T-Rex is a Three-Phase Voltage Vector Option for the TR-Spy Mark II. It is a rugged, portable, option that allows the operator to test the phase relationships of transformer windings while applying three phase voltage. This option can precisely measure the angular relationship of transformer phases. This option is especially useful for transformers with phase relationships other than 30 degrees and Zig-Zag types.
Specifications
Fully automatic.
Three-phase Voltage Vector measuring
Single hook up to the transformer
Load on test object < 0.05 VA
Heavy duty protection circuitry
Centronics (Parallel) Interface
System is housed in a rugged, lightweight, and water proof case
5 Year standard warranty
Self calibrating
Standard Items
Interface: 25 Pin Centronics Parallel
Input Power: 100 to 240 Vac 50 / 60 Hz Autoranging
Output Voltage: 40 Vac / 0.5A (max.)
Size: L: 18.5" (470 mm) W: 14.6" (371 mm) H: 7.5" (190 mm)
Weight: 17.2 lbs. (7.85 kg)
Cable Set/ Accessories - 2 Interconnect cables, System Interconnect power cord, Power Cord (8’), Operation manual, Test Certificate
