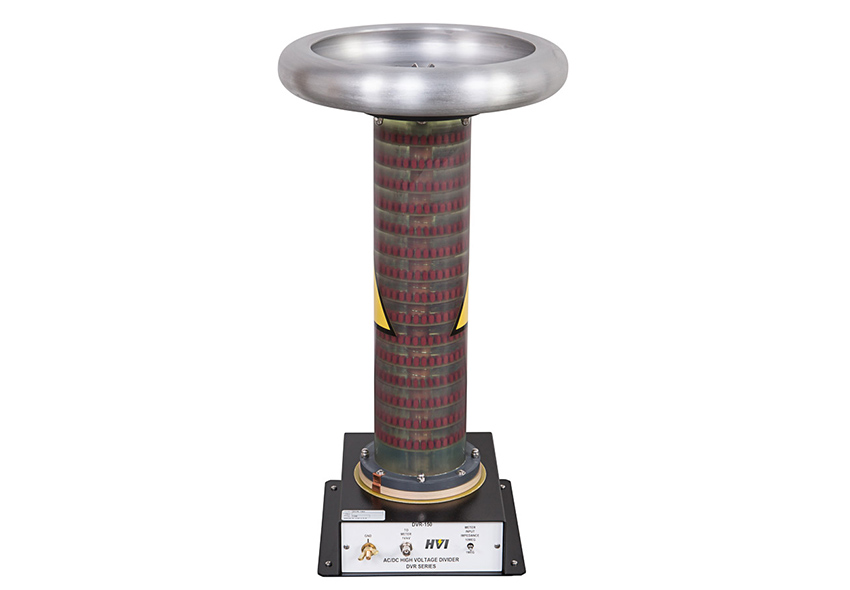

The DVR-150 is a precision resistor/capacitor high voltage divider that provides a low voltage output proportional to the applied high voltage. Its 1000:1 ratio extends the measurement capability of most digital voltmeters and oscilloscopes to 150,000 volts. The divider includes a switchable low end impedance to match various metering inputs.
Features
Can be used as a reference for in-house high voltage calibrations
Designed to be used with most DMMs or oscilloscopes
No external power sources required
Switch selectable 10 Meg or 1 Meg low end impedance
Light weight, transit sturdy assembly
Less susceptible to effects to electric field proximity
