Features and Benefits

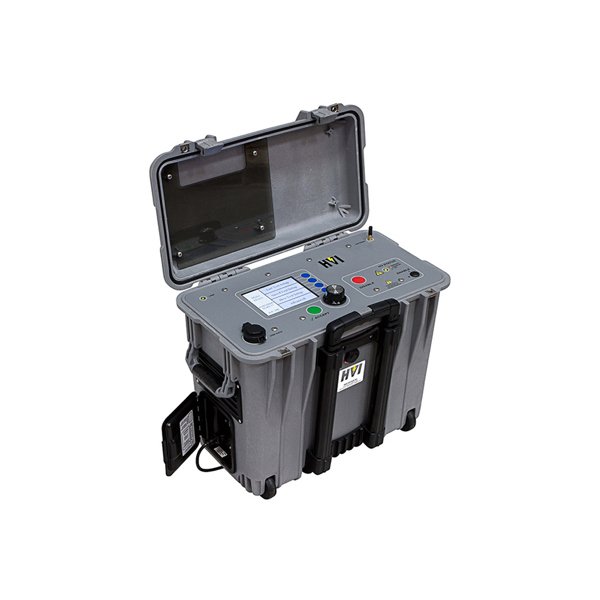

The VLF-34E is a top performer from the latest generation of HVI VLF AC hipots using a dry-type, air-cooled, solid state design with microprocessor control. Test programming, data retrieval, and custom PC software are intuitive and easy to learn. This unit is portable, affordable, and designed to withstand years of field use.
Its 0 – 34 kV AC peak/0 – 24 kV RMS output voltage meets world standards for maintenance testing up to 25 kV class cable, and its sine wave output pairs easily with the optional tan delta and partial discharge measurement systems.
Features
VLF and DC output
Programmable test sequences
Automatic & manual control
USB port for exporting data
Wireless computer interface for remote control operation and data upload
Onscreen tan delta data display with optional TD-34E
XBee wireless for better signal sustainability and broader range than Bluetooth
Specifications
The VLF-34E meets the following specifications: IEEE 400.2, IEEE 400, IEC 60060-3, CENELEC HD 620/621, VDE DIN 0276-620/621. IEEE 433 for motors/gens.
Input:
115 V AC – 230 V AC, 50 Hz/60 Hz, 5 A max
Output:
0-34 kV AC peak/0-24 kV AC RMS, sinusoidal DC: +/- 34 kV square wave: 34 kV sheath tester
Duty:
Continuous
Frequency:
0.1 Hz to 0.01 Hz
Load Rating:
0.5 µF @ 0.1 Hz @ 34 kV
1.0 µF @ 0.05 Hz @ 34 kV
5.0 µF @ 0.01 Hz @ 34 kV
µF rating increases at lower voltages
Ex: 0.77 µF @ 0.1 Hz @ 22 kV peak
Metering:
Voltage kV peak or RMS
Current:
mA peak or RMS
Calculated:
Capacitance, resistance, flash overvoltage, time to failure
Size & Weight:
(W x D x H)
19.7 x 12 x 18 in., 45 lbs.
500 x 305 x 458 mm, 21 kg
Case:
Hard Pelican-type case with extendable handle and wheels
Output Termination:
20’ RG8/U, Ground 20’ #2
