Features and Benefits

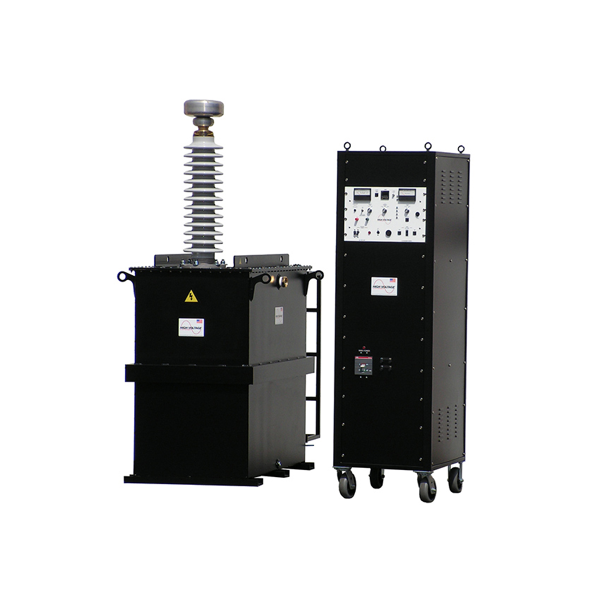

VLF-200CMF provides a 200 kV AC peak output voltage suitable for performing VLF hipot tests on 138 kV cable and as a voltage source for tan delta and partial discharge testing on 160 kV cable. The controls offer all the features of other HVI VLF models along with VLF cable burn mode, which reduces fault arc-over voltages to facilitate the use of conventional thumpers for fault locating. This two-piece unit can be delivered with an optional trailer or van mount design.
Features
HV on/off
Motorised voltage control
Zero start interlock
External interlock
Digital timer
Capacitance measuring circuit
Cable burn mode
Fixed 120% overload
Automatic data logger
Specifications
Input:
230 V single phase, 80 A peak, 50/60 Hz
Output:
0-200 kV AC peak, 100 mA (bushing output – cable not included)
Duty:
Continuous
Load Rating:
0.75 µF @ 0.1 Hz
1.5 µF @ 0.05 Hz
3.75 µF @ 0.02 Hz
Voltmeter:
0 – 200 kV AC peak, 3.5″ analog display
Charging Current Meter:
0 – 200 mA, 3.5″ analog display
Load Capacitance Meter:
0 – 6 µF
Size & Weight:
(W x D x H)
Controls:
24 x 25.5 x 71 in., 650 lb.
61 x 65 x 180 cm, 295 kg
HV Tank:
59 x 37 x 87 in., 3700 lb.
155 x 93 x 220 cm, 1678 kg
